SPECIFICATION

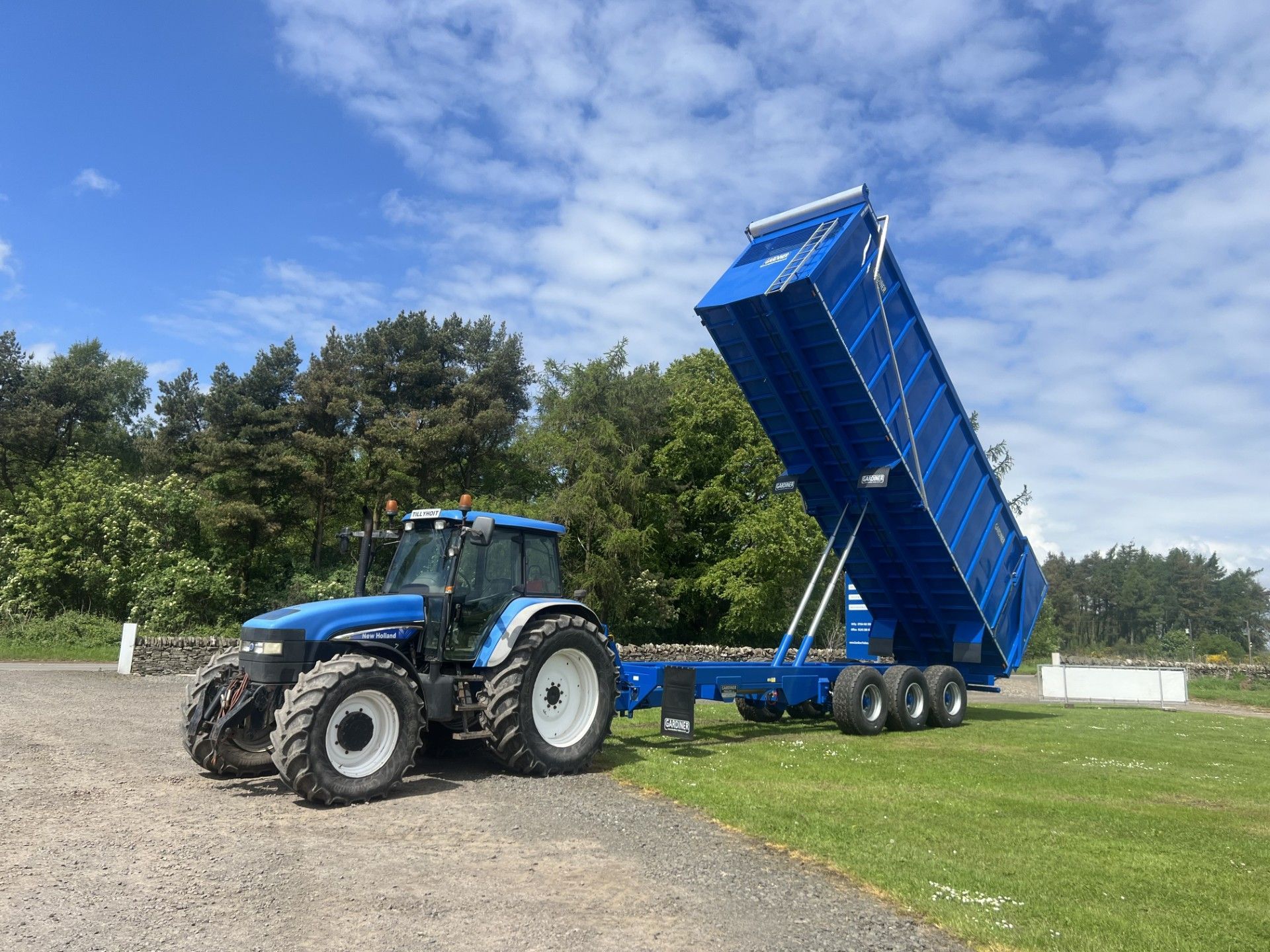

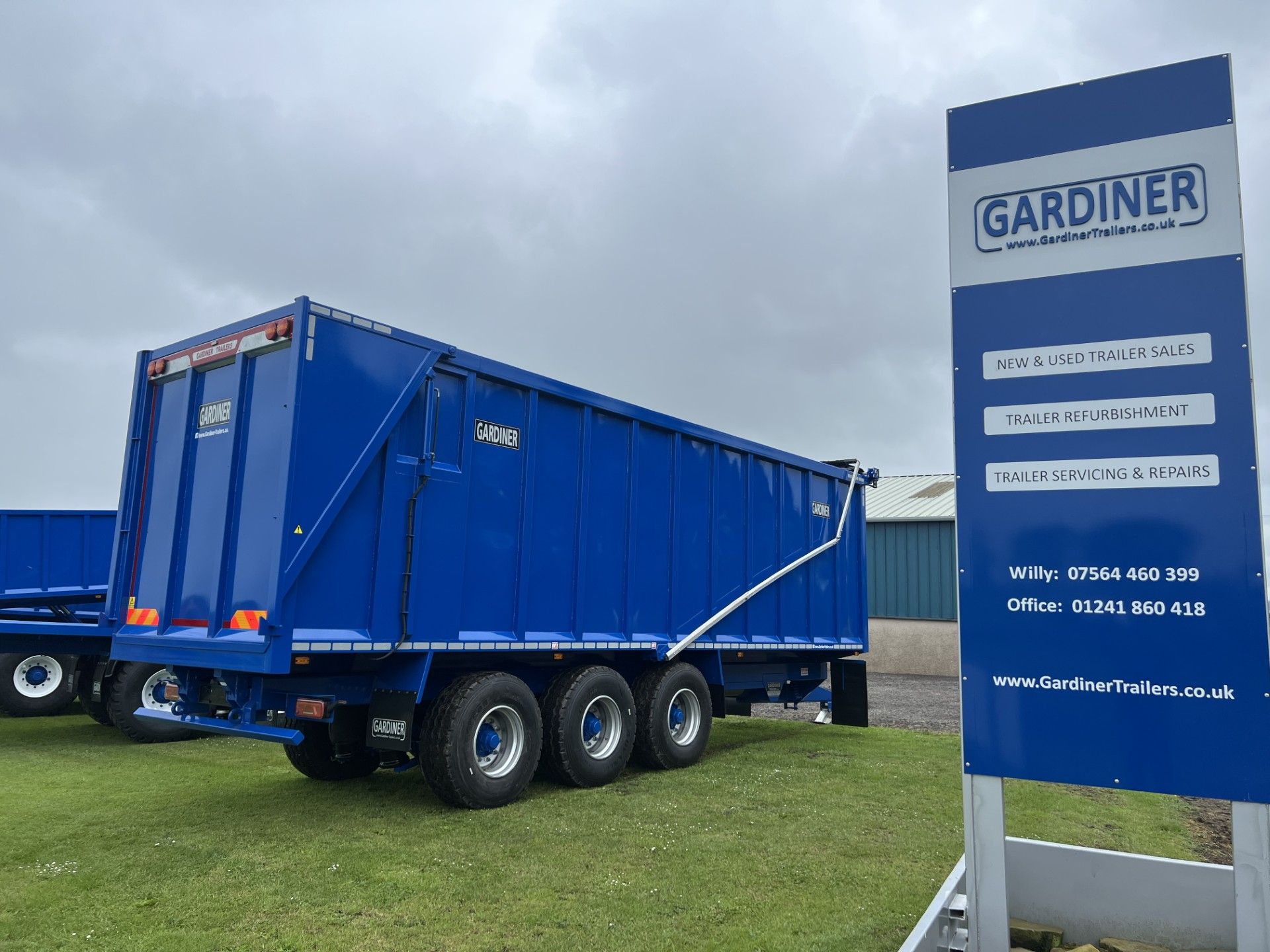

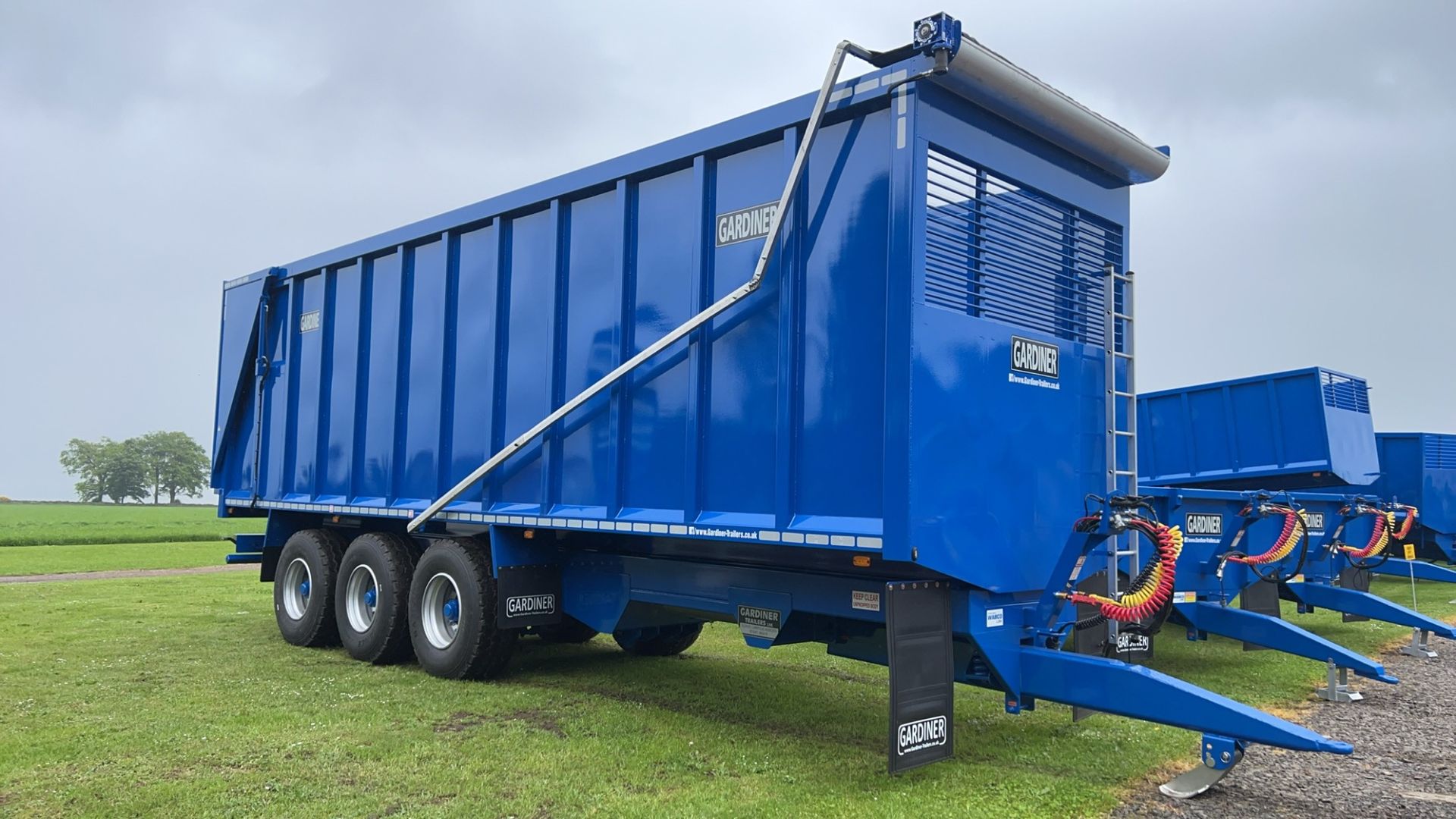

Gardiner 22T Tri-Axle Tipping trailer standard spec

*Fast tow trailer. Maximum speed 80kmp

*Granning 10 stud high speed commercial axles

*250 x 150 x 8mm box section chassis

*4mm floor as standard 3mm walls (or to spec)

*Wabco Air & hydraulic brakes with load sensing

*coil sprung drawbar

*hydraulic door with saftey lock

*LED road lighting system & beacon

*560/60/22.5, 500/60/22.5,  560/45/22.5  flotations (Noikan country kings as standard) or choice

*3 or 4 leaf granning parabolic suspension

*plastic double mud wings and mud flaps, front spray flaps

*Alimunium front Ladder

*full front width window

*rear crash bumper/light protector

*front hose and suzie bulkhead

*sandblasted & painted in two-pack paint

optional extras

*rear steering axle

*Air suspension

*super single wheels or choice of own.

*electric or hydraulic front to rear mesh cover

*rollover cover

*hydraulic operated rollover cover

*silage sides, extra grain sides

*spoon hitch

*sign writing/company logos

*ABS braking system

*extra tool boxes

*rope hooks

*front gantry/walkway

call or email us for prices and anymore info you require we would be more than happy to discuss,

willy 07564460399   willyf118@hotmail.com
